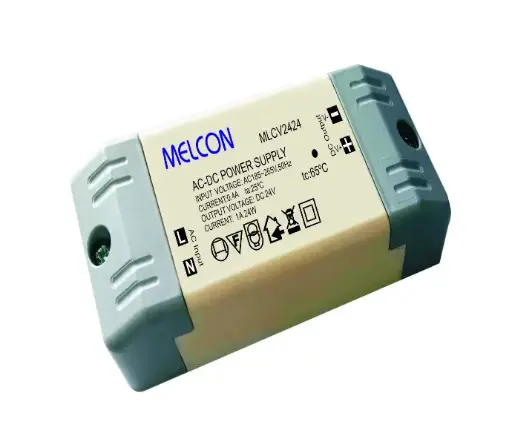

Input 185-277VAc Output 24V0.5A SMPS for LED/Industrial Application

Input 24VAC-DC Output 34-42VDc-200mA with molded case

Input 24VAC-DC Output 34-42VDc-700mA with molded case

Power Consumption: 60 Watts
Luminous Efficacy: Approximately 130 lumens per watt
Total Luminous Output: Around 6700 to 7000 lumens
Color Temperature (CCT): 6200 deg.K
Color Rendering Index (CRI): Greater than 80
Beam Angle :120°
Input Voltage: Usually AC100-277V, 50/60Hz
Power Factor: >0.95, ATHD<10%, Surge 4KV DM, 3.5KV CM.
Ingress Protection (IP) Rating: IP35, suitable for damp environments (In-Door)
Operating Temperature Range:  -10°C to +50°C
Weight: Approximately 2.3 kg
Housing Material: Aluminum
Certifications: CE, RoHS,
Warranty: 2 years

Power Consumption: 80 Watts
Luminous Efficacy: Approximately 130 lumens per watt
Total Luminous Output: Around 6700 to 7000 lumens
Color Temperature (CCT): 6200 deg.K
Color Rendering Index (CRI): Greater than 80
Beam Angle :120°
Input Voltage: Usually AC100-277V, 50/60Hz
Power Factor: >0.95, ATHD<10%, Surge 4KV DM, 3.5KV CM.
Ingress Protection (IP) Rating: IP35, suitable for damp environments (In-Door)
Operating Temperature Range:  -10°C to +50°C
Weight: Approximately 2.3 kg
Housing Material: Aluminum
Certifications: CE, RoHS,
Warranty: 2 years

Input 185-277VAc, Output 1x11 Lamps FTL, Lamp removal, End of lamp life, Input Over oltage Shutdown protections, PF>0.9 ATHD<30%, Mosfet driven Ballast. Warranty 18 Months.

Input 185-277VAc, Output 2x18 Lamps FTL, Lamp removal, End of lamp life, Input Over oltage Shutdown protections, PF>0.9 ATHD<30%, Mosfet driven Ballast. Warranty 18 Months.

Input 185-277VAc, Output 2x18 Lamps FTL, Lamp removal, End of lamp life, Input Over oltage Shutdown protections, PF>0.9 ATHD<30%, Mosfet driven Ballast. Warranty 18 Months.

Input 100-277VAC, Output 3-12VDc-350mA Constant Current LED Driver, IEC-CB,CE,ENEC,BIS Certified, Molded case, Warranty 2 years.

Input 100-277VAC, Output 3-12VDc-500mA Constant Current LED Driver, IEC-CB,CE,ENEC,BIS Certified, Molded case, Warranty 2 years.

Input 100-277VAC, Output 3~12VDc-700mA Constant Current LED Driver, IEC-CB,CE,ENEC,BIS Certified, Molded case, Warranty 2 years.

Input 100-277VAC, Output 12~24VDc-350mA Constant Current LED Driver, IEC-CB,CE,ENEC,BIS Certified, Molded case, Warranty 2 years.

Input 100-277VAC, Output 12~24VDc-350mA Constant Current LED Driver, IEC-CB,CE,ENEC,BIS Certified, Molded case, Warranty 2 years.

Input 100-277VAC, Output 27-42VDc-500mA Constant Current LED Driver, IEC-CB,CE,ENEC,BIS Certified, Molded case, with Input OVP>290VAc,Output Short Ckt Auto recovery protections.Warranty 2 years.

Input 100-277VAC, Output 27-42VDc-600mA Constant Current LED Driver, IEC-CB,CE,ENEC,BIS Certified, Molded case, with Input OVP>290VAc,Output Short Ckt Auto recovery protections.Warranty 2 years.

Input 100-277VAC, Output 27-42VDc-700mA Constant Current LED Driver, IEC-CB,CE,ENEC,BIS Certified, Molded case, with Input OVP>290VAc,Output Short Ckt Auto recovery protections.Warranty 2 years.

100-277VAc ,27-42VDc Output 600mA,PF>0.96, ATHD<10%, Surge Prot. 3KV DM,2.5KVCM, High Performance branded UL-VDE certified components for longer life, Warranty 18 months against mfg defects if any. IP-20, IP65 option available.

100-277VAc ,27-42VDc Output 1.4A,PF>0.96, ATHD<10%, Surge Prot. 3KV DM,2.5KVCM, High Performance branded UL-VDE certified components for longer life, Warranty 18 months against mfg defects if any. IP-20, IP65 option available.
